DCI Digital Communications

Standard Wi-Fi and ISM Filters

Add a 19" rack mounting plate to any Wi-Fi filter - $20.
Wi-Fi filters can also be silver plated, see the bandpass filter section of the pricing page.

Model	Options	Isolation (at 30 dB and Channel*)	Poles	Dimensions (WxDxH)	Weight
2.4 GHz Full Band Filters

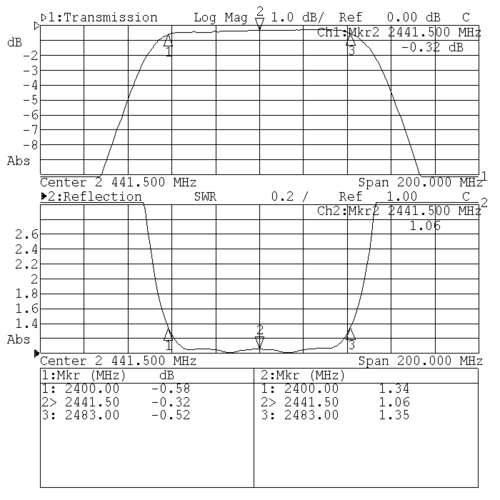

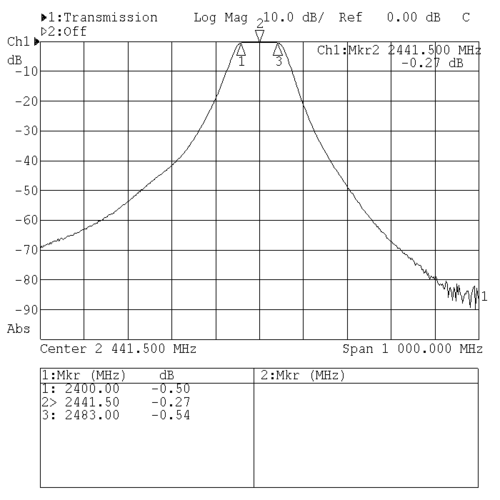

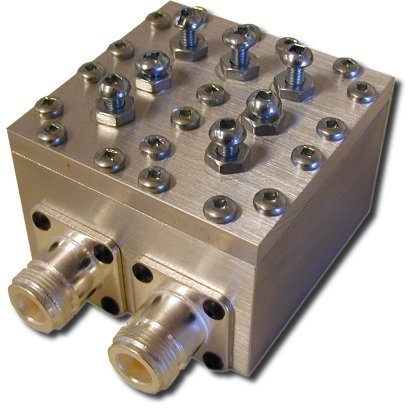

2400-2483 MHz 4 Pole Full Band Filter (DCI-BPF-FB-4P)	Connector: N	At 30 dB: -145/+125 MHz	4	2.5" x 3.25" x 2.25"	1 lb.

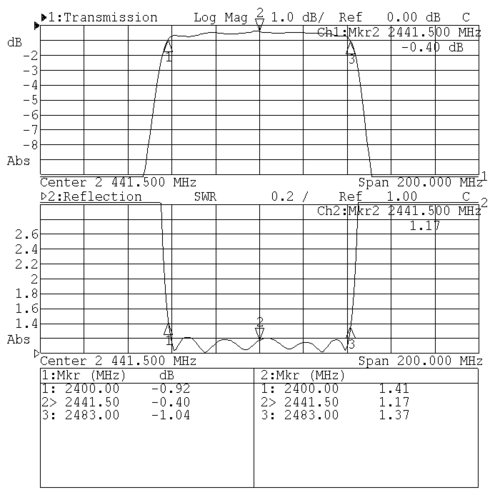

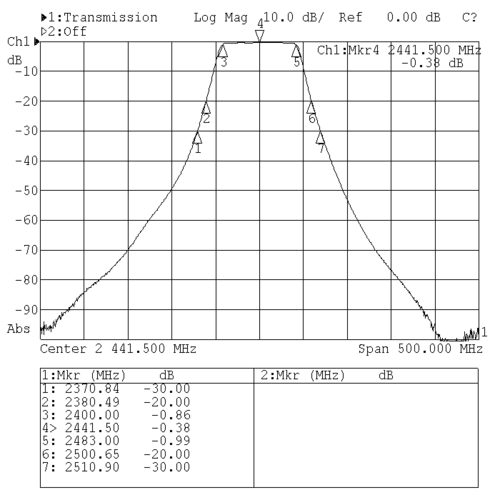

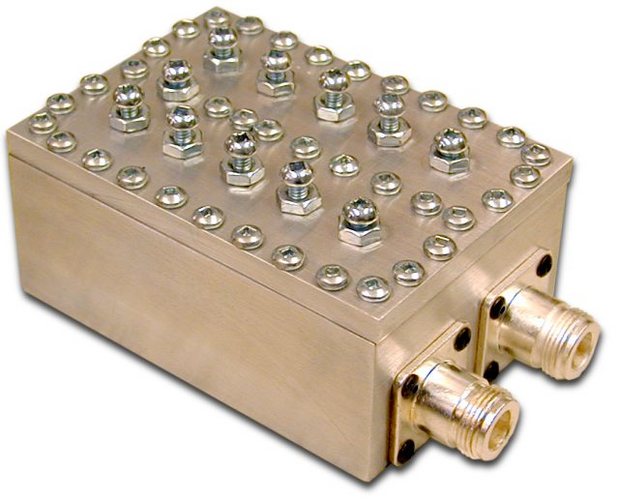

2400-2483 MHz 6 Pole Full Band Filter (DCI-BPF-FB-6P)	Connector: N	At 30 dB: +/- 70 MHz	6	2.75" x 4.75" x 2.25"	1.4 lbs.

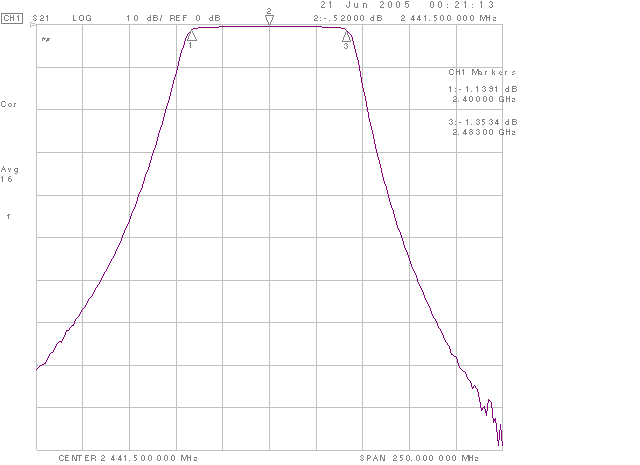

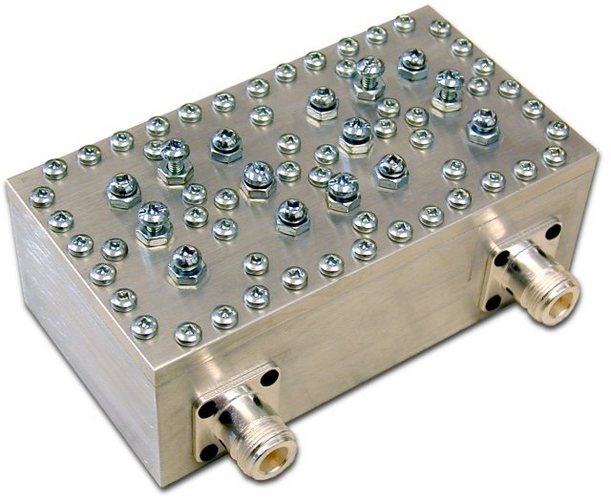

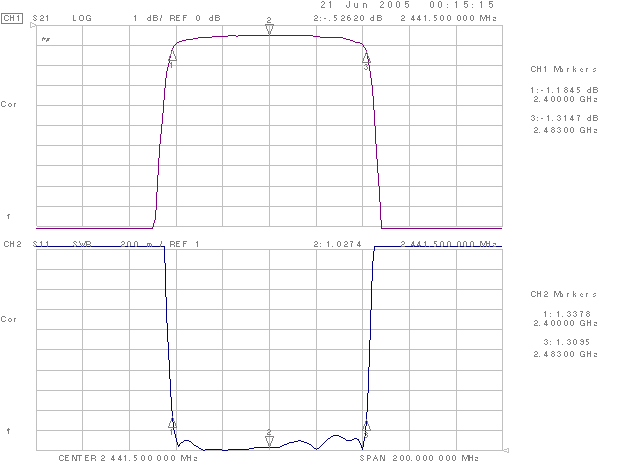

2400-2483 MHz 8 Pole Full Band Filter (DCI-BPF-FB-8P)	Connector: N	At 30 dB: +/- 57 MHz	8	6.5" x 5.75" x 2.25"	2.0 lbs.

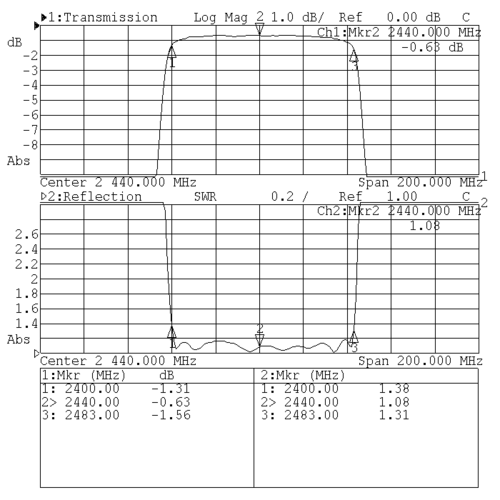

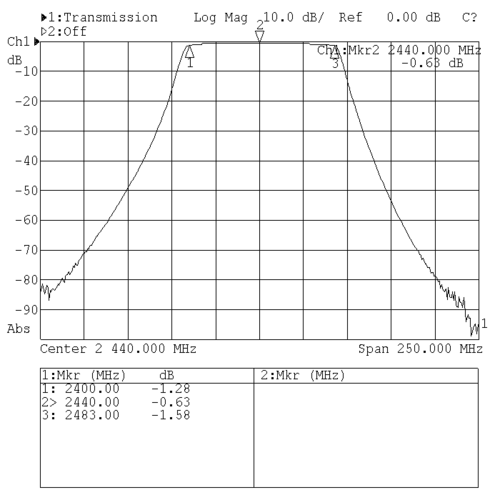

2400-2483 MHz 8 Pole Weather Resistant Full Band Filter (DCI-BPF-FB-8P-WPF)	Connector: N Weather Resistant	At 30 dB: +/- 58 MHz	8	6.5" x 5.75" x 2.5"	4.2 lbs.
2.4 GHz Channel Filters

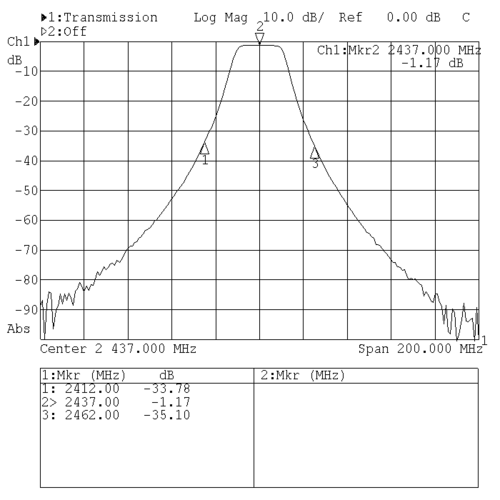

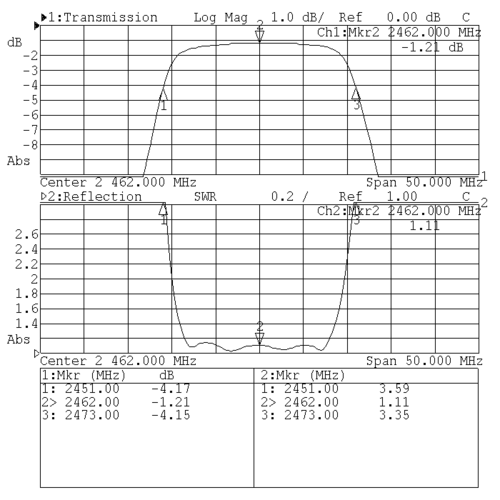

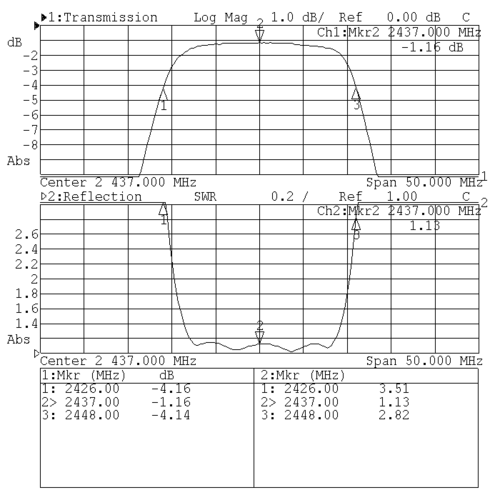

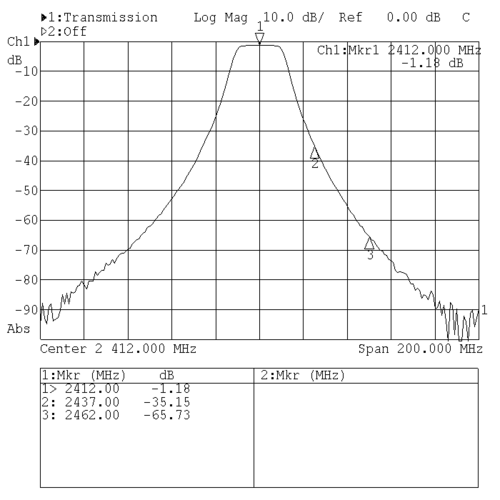

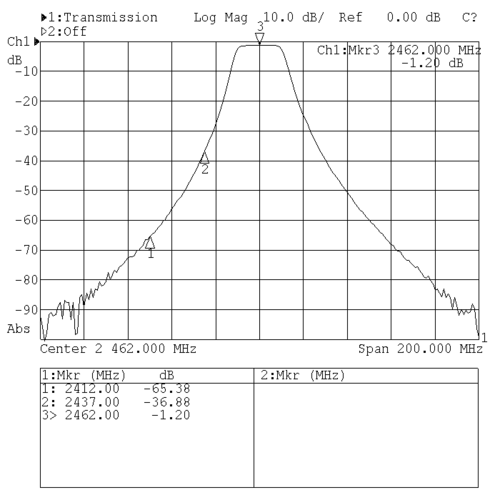

2400-2483 MHz 6 Pole Channel Filter (DCI-BPF-ch#-6P)	Connector: N	At 30 dB: +/- 23 MHz Channel: 34 dB	6	2.75" x 4.75" x 2.25"	1.4 lbs.

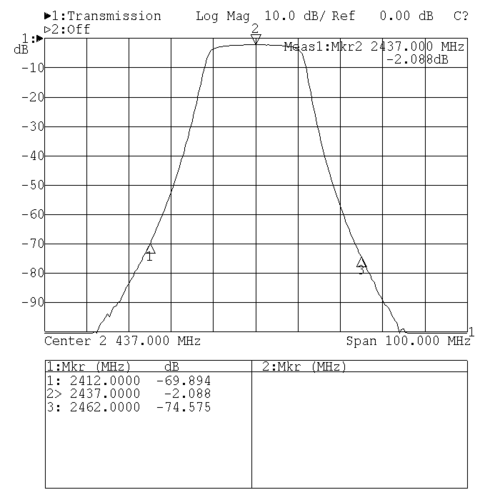

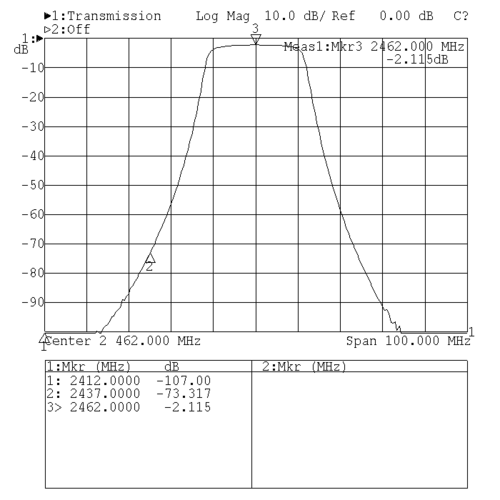

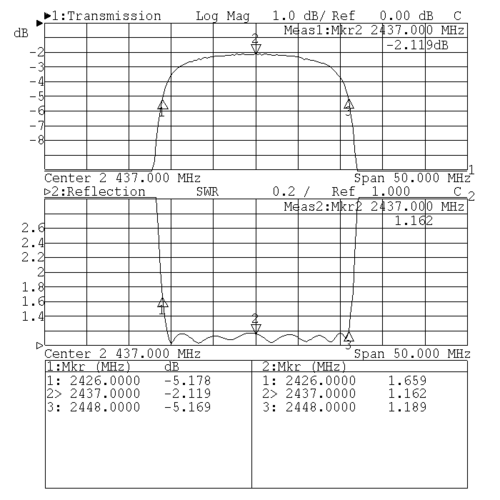

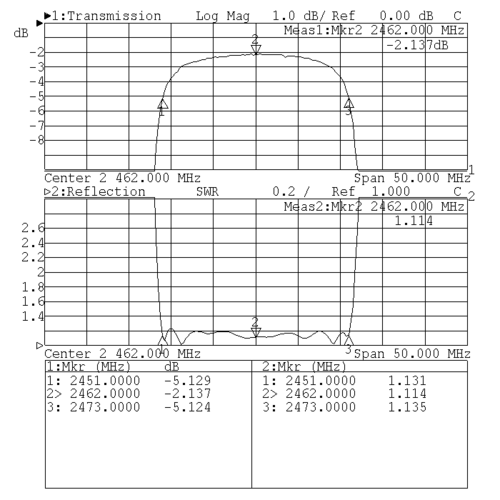

2400-2483 MHz 8 Pole Channel Filter (DCI-BPF-ch#-8P)	Connector: N	At 30 dB: +/- 14 MHz Channel: 80 dB	8	5.5" x 3.75" x 2.5"	2.2 lbs.

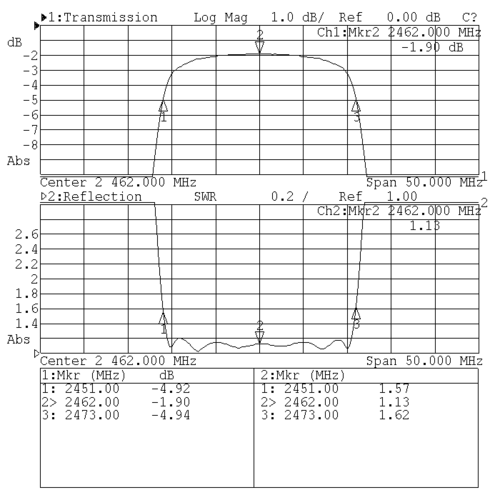

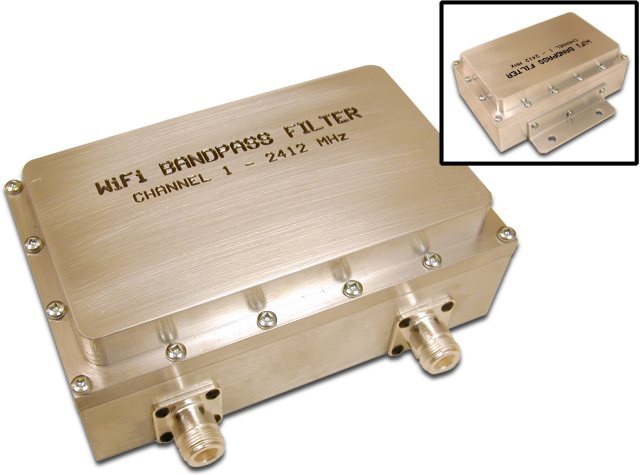

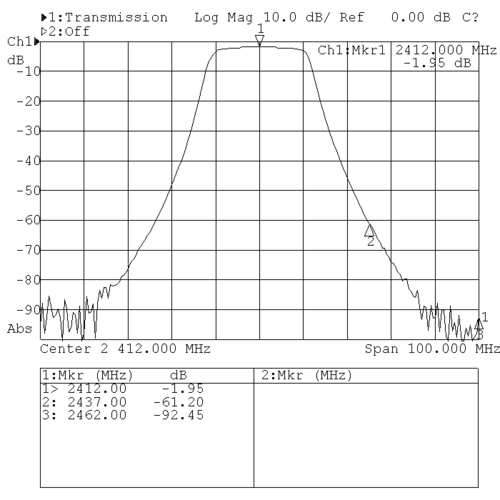

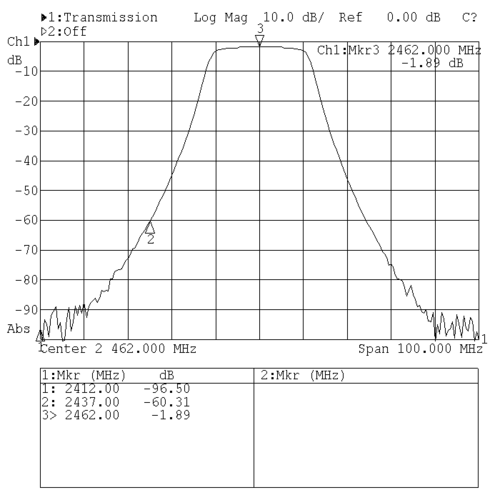

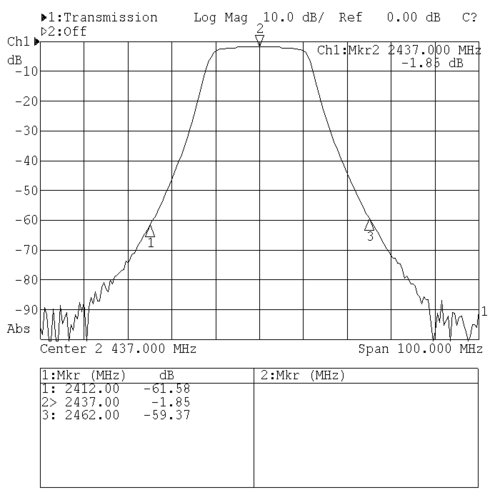

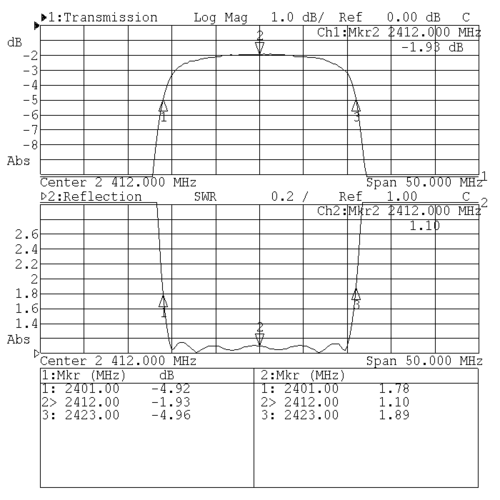

2400-2483 MHz 8 Pole Weather Resistant Channel Filter (DCI-BPF-ch#-8P-WPF)	Connector: N Weather Resistant	At 30 dB: +/- 16 MHz Channel: 60 dB	8	6.5" x 5.75" x 2.5"	4.2 lbs.

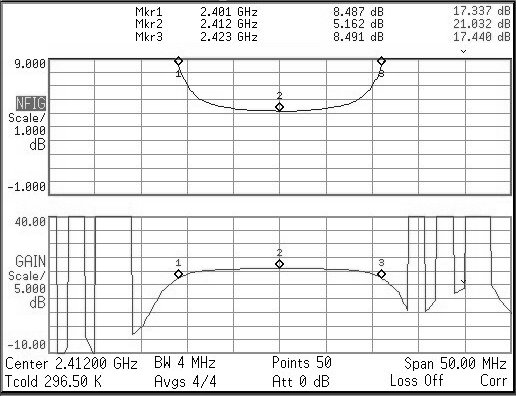

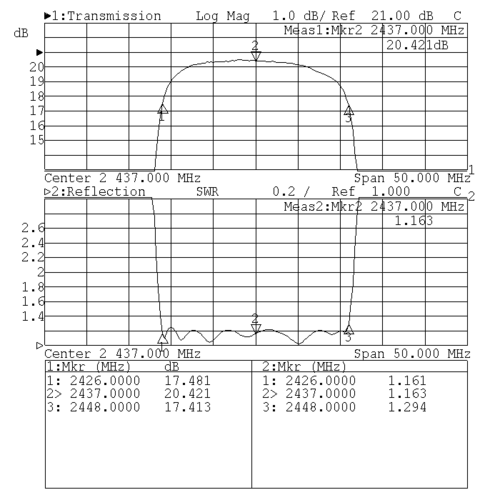

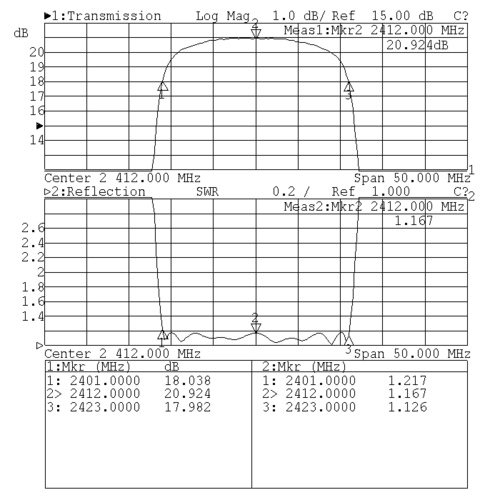

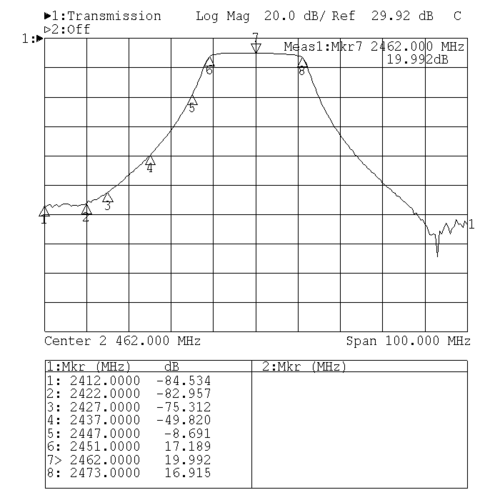

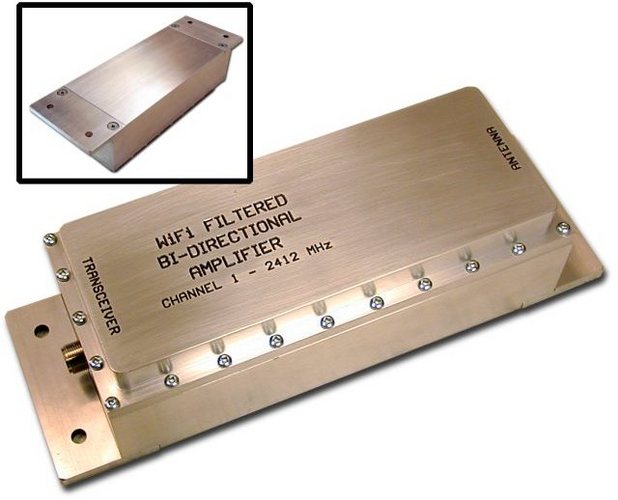

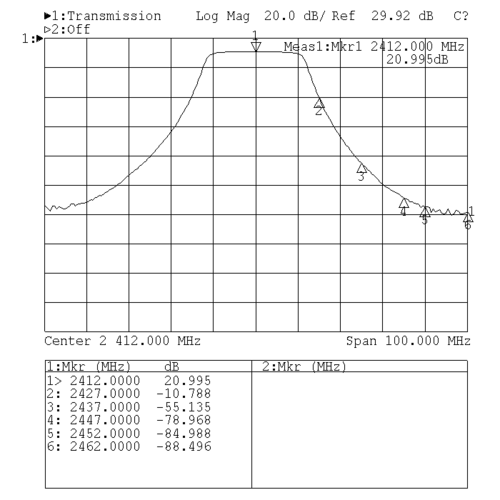

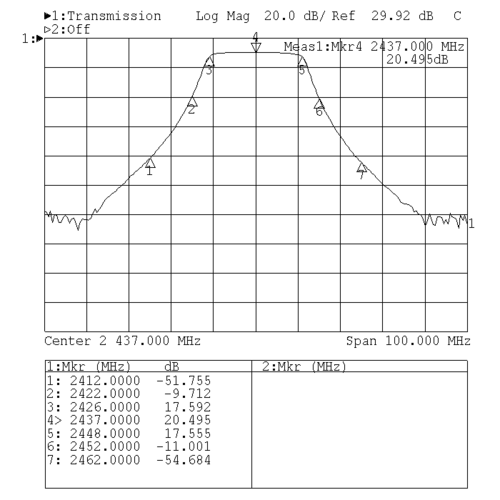

2400-2483 MHz 8 Pole Weather Resistant Amplified Channel Filter (DCI-BPF-ch#-8P-WAPF)	Connector: N Weather Resistant Amplified	At 30 dB: +/- 14 MHz Channel: 80 dB	8	4.0" x 12.0" x 2.5"	7.0 lbs.
900 MHz Filters

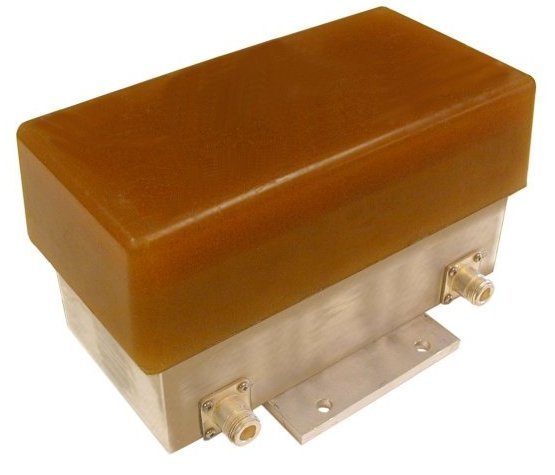

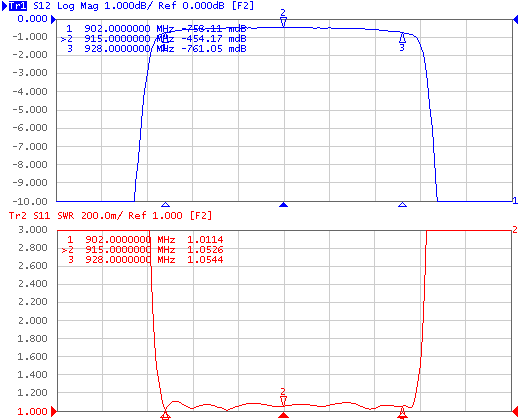

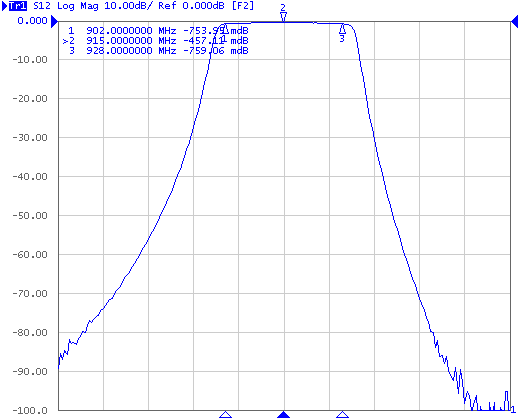

902-928 MHz 8 Pole Weather Resistant Full Band Filter (DCI-900-FB-8P-WPF)	Connector: N Weather Resistant	At 30 dB: +/- 20 MHz	8	9" x 4.75" x 5.0"	7.75 lbs.

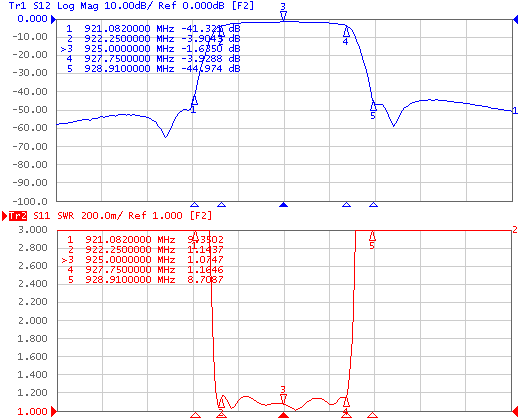

902-928 MHz 8 Pole Weather Resistant 5.5 MHz Wide Channel Filter (DCI-900-ch.#-8P-WPF)	Connector: N Weather Resistant	At 30 dB: +/- 3.6 MHz Channel: 50 dB	8	9" x 4.75" x 5.0"	7.75 lbs.

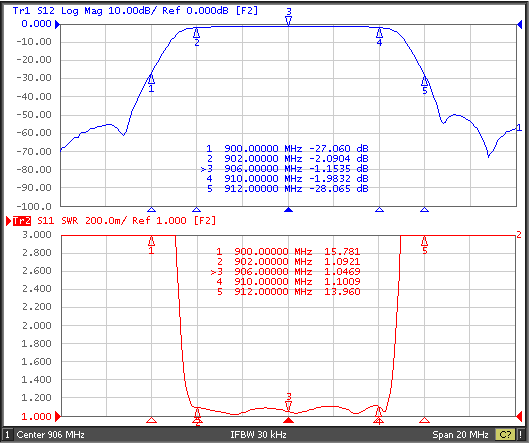

902-928 MHz 8 Pole Weather Resistant 8 MHz Wide Channel Filter (suitable for Motorola Canopy) (DCI-900-ch.#-8P-WPF)	Connector: N Weather Resistant	At 30 dB: +/- 6 MHz	8	9" x 4.75" x 5.0"	7.75 lbs.
5.7 GHz Filters

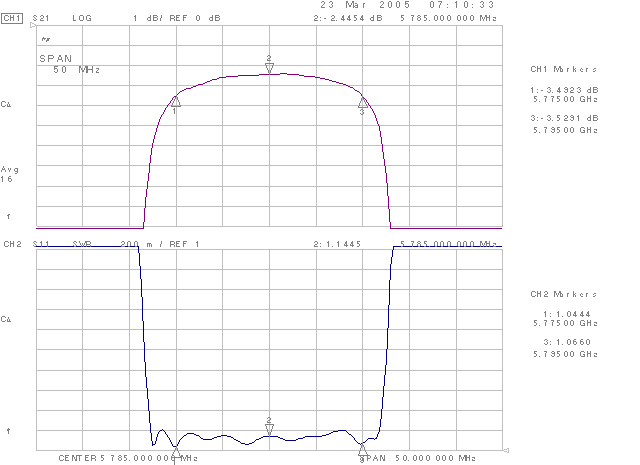

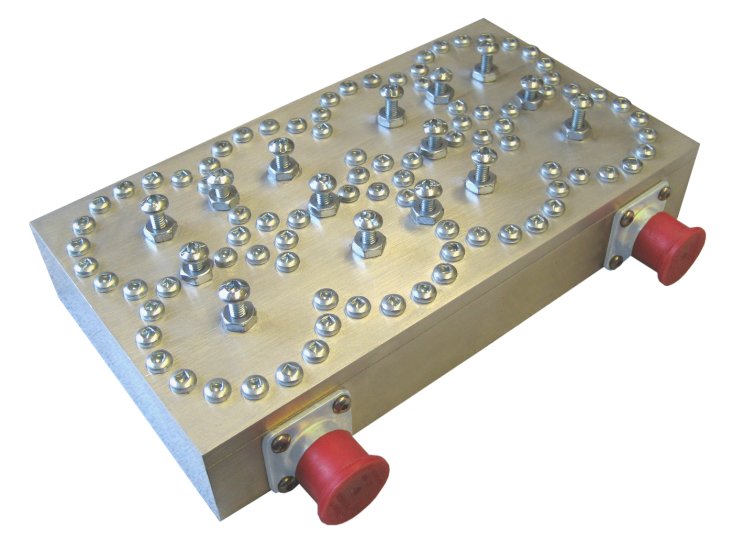

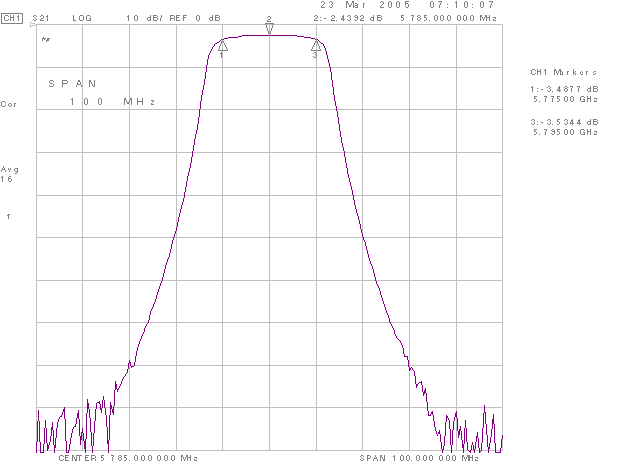

5.7 GHz 8 Pole Channel Filter (DCI-5.7-ch.#-8P)	Connector: N	At 30 dB: +/- 16 MHz	8	8.25" x 7.5" x 1.75"	3 lbs.

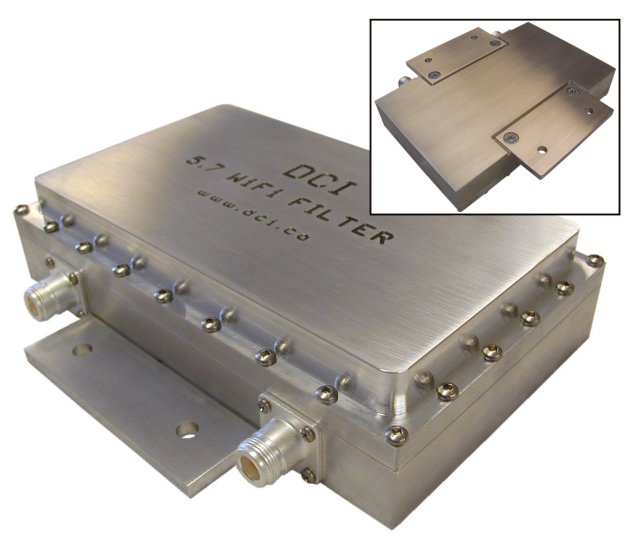

5.7 GHz 8 Pole Weather Resistant Channel Filter (DCI-5.7-ch.#-8P-WPF)	Connector: N	At 30 dB: +/- 16 MHz	8	8.25" x 7.5" x 2"	3.6 lbs.
Multichannel Filters

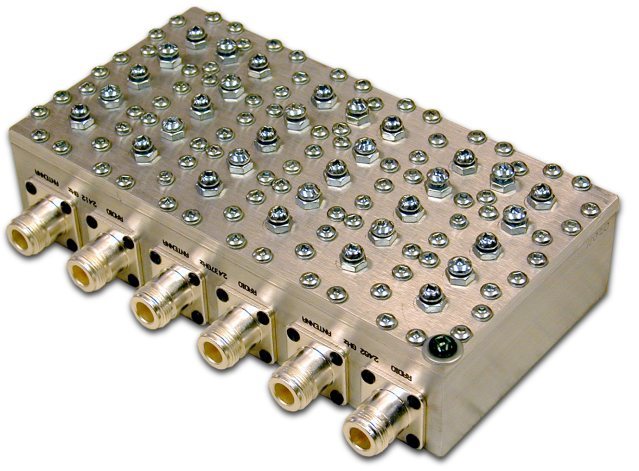

2400 MHz 6 Pole 3 Channel Filter (DCI-BPF-3CH-3x6P)	Connector: N	At 30 dB: +/- 23 MHz Channel: 34 dB	6(x3)	7.75" x 4.75" x 2.25"	3.6 lbs.

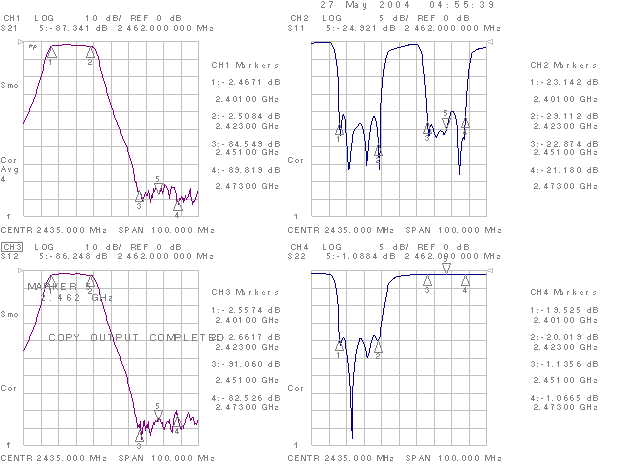

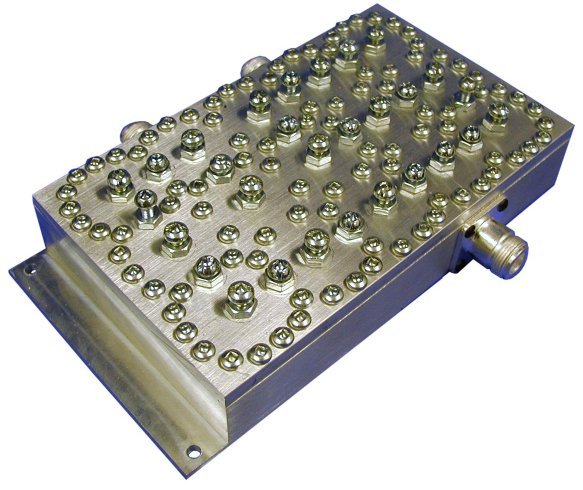

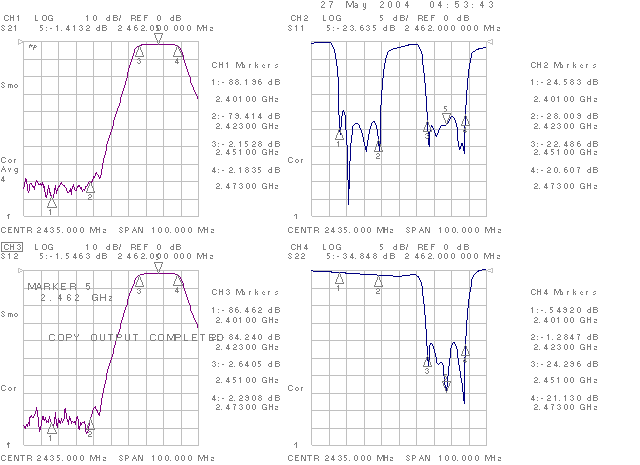

Channel 1 and 11 Duplexer / Diplexer (DCI-DPX-CH1-11-2x8P)	Connector: N	At 30 dB: +/- 22 MHz Channel: 80 dB	8(x2)	7.25" x 5.5" x 2.25"	2.6 lbs.

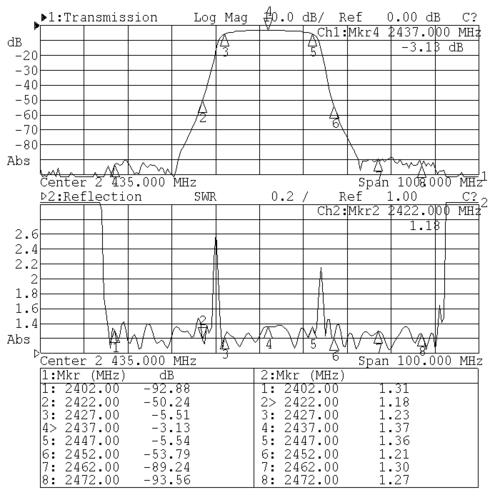

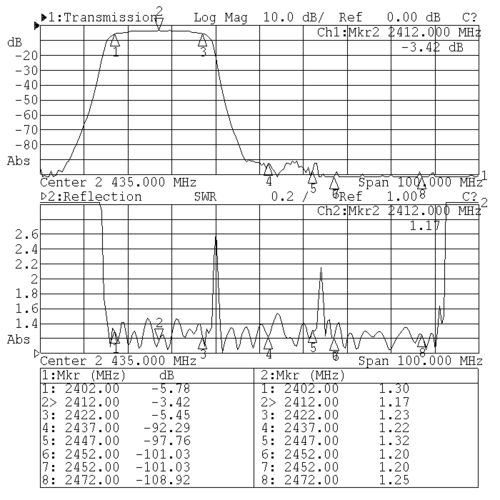

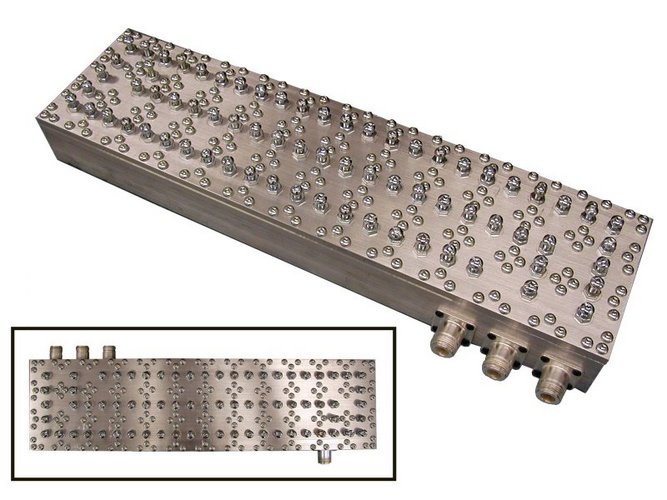

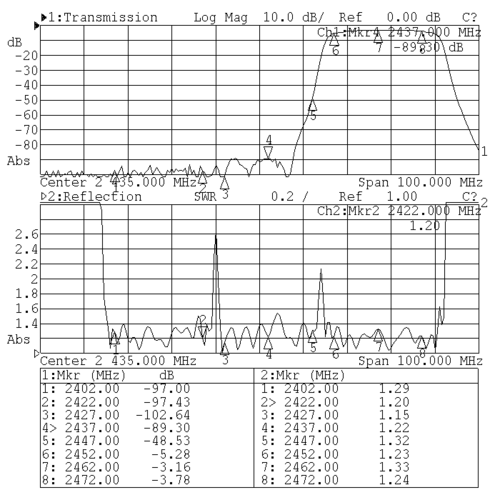

Channel 1, 6, and 11 Triplexer (DCI-TPX-CH1-6-11-3x12P)	Connector: N	At 30 dB: +/- 13 MHz Channel: 90 dB	12(x3)	15.25" x 4.0" x 2.25"	7 lbs.

* Channel Isolation measured in dB to adjacent channel center
